Home » Access & Intercom » Exit Devices » Push Buttons

View Larger

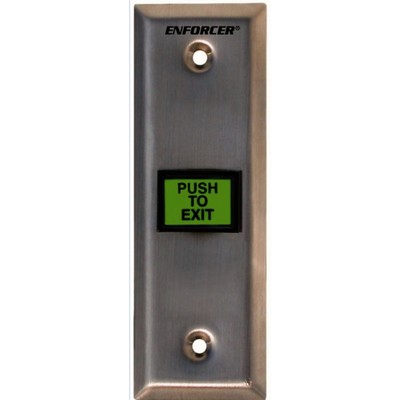

Push-To-Exit Plate Slim

Name: Push-To-Exit Plate Slim
Brand: Seco-Larm
SKU: SD-7103GC-PEQ
Rating: 5 (1 reviews)

Item # SD-7103GC-PEQ

Manufacturer Item # SD-7103GC-PEQ

Sold As: EA

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Push-To-Exit Plate Slim

Illuminated green "PUSH-TO-EXIT" button. Message language can be easily replaced between English, Spanish and French with 3 included interchangeable plates. SPDT switch, 10A@125-250VAC. Stainless-steel slimline plate.

Features:

Momentary switch, D.P.S.T., NO/NC contacts rated 5A@24VAC
CE and UL approved switch
Stainless-steel slimline plate
Six plug-in terminals
Six color-coded, 12", AWG 18 wire leads with easy-to-attach spade lugs for fast installation
Plastic terminal protector for dividing individual terminals
Mechanical lifetime 2,000,000 operations
LED (12V, 35,000-hour life)
680 Ohm, 0.5W resistor for 24V LED operation included

Specifications

Product Name	Push-To-Exit Plate Slim

Brand Name	Seco-Larm

Mfg #	SD-7103GC-PEQ

Cube	20.67 cu in

Length	1.50 in

Width	1.94 in

Height	4.50 in

Color	Green

Country of Origin	TW

Duty	Regular

Harmonized Code	8531.80.9051

Installation	Flush

Loop	NO/NC

Operating Voltage	12 / 24 VDC

Physical Format	Mullion

UPC	676544002352

Documents

SD-7103GC-PEQ.pdf
