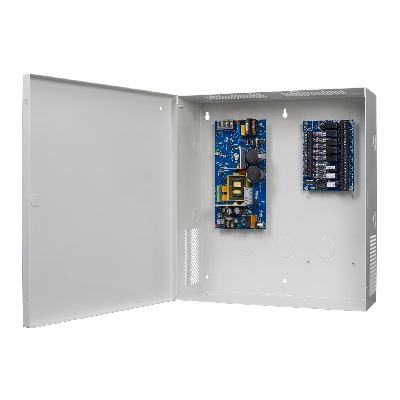

Name: Securitron AQD6-16F2 AQD6 Series Supervised Switching Power Supply 12/24 VD, 6A 16 Fused Outputs
Brand: Securitron
SKU: AQD6-16F2
Rating: 5 (1 reviews)

Overview

Securitron AQD6-16F2 AQD6 Series Supervised Switching Power Supply 12/24 VD, 6A 16 Fused Outputs

The AQD6-16F2 is a supervised power supply designed to provide reliable 12VDC or 24VDC power distribution for security, access control, and other low-voltage applications. It provides up to 6 amps of power with 16 fused outputs, each protected by a 2A fuse.

Its supervised design helps monitor the power distribution system and identify potential faults, making it suitable for professional security and access control installations.

Features:

Low battery cutoff at 9V at 12V or 18V at 24V
All combinations of AQ power supplies and distribution boards are UL listed
Circuit breaker protects against overcurrent and reverse battery faults
Up to 91% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
Available with a single relay fire trigger or individually triggered relayed outputs
Dedicated battery charging circuit prevents overvoltage on locking devices
Thermal shutdown protection with auto restart
Tolerates brownout or overvoltage input ± 15% of nominal voltage
Dual voltage 12 or 24 VDC field selectable continuous output

Specifications

Product Name	Securitron AQD6-16F2 AQD6 Series Supervised Switching Power Supply 12/24 VD, 6A 16 Fused Outputs

Brand Name	Securitron

Mfg #	AQD6-16F2

Cube	1536 cu in

Length	14.00 in

Width	4.75 in

Height	14.00 in
