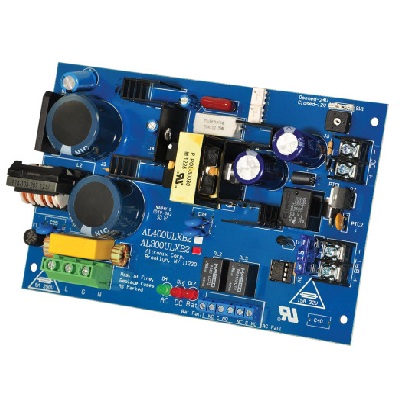

Altronix AL300ULXB2 Power Supply Charger, Single Class 2 Output, 12/24VDC @ 2.5A, 115VAC, Board

The Altronix AL300ULXB2 is a UL recognized power supply and battery charging unit designed to convert a 115VAC, 60Hz input into a single Class 2 rated, power-limited output of either 12VDC or 24VDC. It is commonly used in security, access control, and fire protection systems where reliable and regulated DC power is required.

This unit includes built-in monitoring features such as AC failure supervision, battery presence detection, and low battery supervision. These functions help ensure system reliability by providing alerts for power issues and maintaining proper backup battery operation.

Designed for safety and dependability, the AL300ULXB2 is suitable for applications that require consistent DC power delivery along with advanced system supervision capabilities for critical security infrastructure.

Features:

• Input 115VAC 60Hz, 3.5A.
• Input fuse rated @ 3.5A/250V.
• 12VDC or 24VDC selectable output. Burglar Alarm Applications (UL 603):
• 12VDC = 10VDC-13.2VDC.
• 24VDC = 20VDC-26.4VDC.
• 2.5A total supply current.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type batteries.
• Maximum charge current: 0.7A.
• Automatic switch over to stand-by battery when AC fails.
• Zero voltage drop when switched over to battery backup.
• (Batteries are sold separately).
• AC fail supervision (form "C" contacts).
• Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
• Low battery supervision (form "C" contacts).
• Battery presence supervision (form "C" contacts).
• AC input, DC output and Battery LED indicators.
• Operating: 0° C to 49° C (32° F to 120° F).
• Storage: - 20° C to 70° C ( - 4° F to 158° F).
• Relative Humidity: 85% +/-5%.
  o    BTU/Hr. (approx.):
      12VDC: 17 BTU/Hr.
      24VDC: 32 BTU/Hr.
• System AC input VA requirement: 402.5VA.
