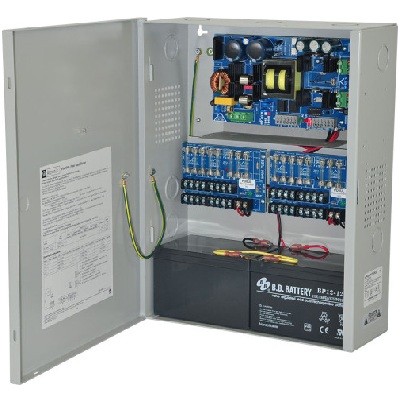

Altronix EFLOW104NX16 Power Supply Charger, 16 Fused Outputs, 24VDC @ 10A, Aux Output, FAI, LinQ2 Ready, 115VAC, BC400 Enclosure
Altronix eFlow104NX16 is a power supply/charger that converts a 120VAC 60Hz input into sixteen fuse protected 24VDC outputs with a total of 10A max. The unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Features:
- Input
o 120 V AC, 60 Hz, 4.5 A
o Input fuse: 5 A/250 V
- Output
o Sixteen (16) fuse-protected outlets
o Outlets rated at 2.5 A
o 24 V DC 10.0 A supply current
o Limited auxiliary power output rated at 1 A (no switch)
o Overvoltage protection
- Battery Charging
o Built-in charger for sealed lead-acid or gel batteries
o Maximum charging current: 1.0 A
o Automatic switching to backup battery in case of AC power failure
o Transfer to backup power is instantaneous and seamless
o (Batteries sold separately)
- Monitoring
o AC failure monitoring (Type "C" contacts)
- The notification timer can be set to 30 seconds (factory setting) or 2 hours.
- Presence and battery failure monitoring (Type "C" contacts).
- Low power shutdown. Disconnects the DC output terminals if the battery voltage drops below 70-75% (depending on the power supply). Prevents deep battery discharge.
- Fire alarm disconnect
- Supervised fire alarm disconnect (with or without latching) with a 10 kΩ EOL resistor. Operates with a normally open (NO) or normally closed (NC) trigger.
- Electrical
- Temperature:
- Operating: 0 °C to 49 °C (32 °F to 120 °F).
- Storage: -20 °C to 70 °C (-4 °F to 158 °F).
- Relative humidity: 85% +/- 5%.
- BTU/h (approx.): 123 BTU/h
- System AC input VA requirement: 540 VA
- Visual indicators
- The green AC power LED indicates the presence of 120 VAC.
- AC input and DC output LED indicators.
- Additional features
- Short-circuit and overload protection.
- Unit includes power supply, enclosure, battery cables, and cam lock.
- Length/Packaging: 305-meter (1000-foot) reel with sequential length markings.
