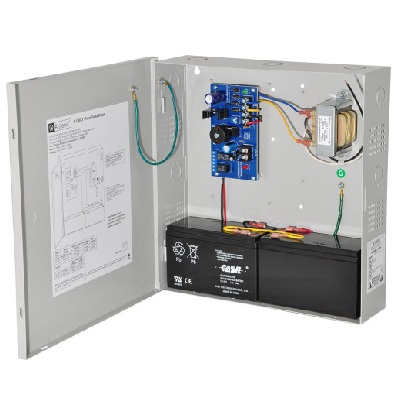

Altronix AL176ULX Access Control Power Supply Charger, Single PTC Class 2 Output, 12/24VDC @ 1.75A, 115VAC, BC300 Enclosure

 The Altronix AL176ULX is a single-output switching power supply and battery charger designed to convert a 115VAC, 50/60Hz input into a regulated DC output. It provides either 12VDC or 24VDC power, depending on system requirements.

This unit features PTC-protected output to help safeguard connected devices from overcurrent conditions, improving overall system safety and reliability. It is commonly used in security, access control, and surveillance applications to power devices such as cameras, control panels, and electronic locks.

In addition to supplying power, the AL176ULX also supports battery charging, ensuring backup batteries remain charged and ready to maintain system operation during AC power failures. Its compact design and dependable performance make it suitable for a wide range of commercial and residential installations.

Features:

• Input 115VAC/60Hz, 0.6A.
• 12VDC or 24VDC selectable output.
• 1.75A supply current.
• Class 2 Rated power-limited output.
• PTC protected output, rated @ 2.5A.
• Filtered and electronically regulated output.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type batteries.
• Automatic switch over to stand-by battery when AC fails.
• Maximum charge current: 0.4A.
• (Batteries are sold separately).
• AC fail supervision (form "C" contacts).
• Low battery supervision (form "C" contacts).
• AC input and DC output LED indicators.
• Operating: 0ºC to 49ºC (32ºF to 120ºF).
• Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
• Relative Humidity: 85% +/- 5%.
• BTU/Hr. (approx.):
  o    12VDC: 11 BTU/Hr.
  o    24VDC: 22 BTU/Hr.
• System AC input VA requirement: 69VA.
