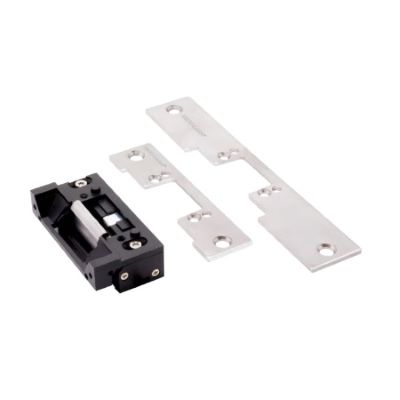

Low-Profile Electric Door Strike with Horizontal Adjustment Seco-Larm SD-996C-NUHQ
View Larger

Low-Profile Electric Door Strike with Horizontal Adjustment

Item # SD-996C-NUHQ
Manufacturer Item # SD-996C-NUHQ

Log In To View
Prices		 Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Seco-Larm
More Products from Seco-Larm 		Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Product Bookmark  Share
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Low-Profile Electric Door Strike with Horizontal Adjustment
Pixel Trans
The SECO-LARM SD-996C-NUHQ Low-Profile Door Strike with Horizontal Adjustment can be used with virtually any cylindrical-locking system and can be configured for use in wood or metal frames. Included are two different ANSI-sized faceplates to match the door frame type. The strike is easily field-configurable for fail-safe or fail-secure applications. For indoor use only.

Features:
  • Field selectable for fail-safe or fail-secure
  • 12/24 VAC/VDC Operating voltage
  • Static strength – 1,500-lb (6,673N)
  • Dynamic strength – 70ft-lb (98J)
  • Includes wiring harness and connectors for either 12VAC/VDC or 24VAC/VDC
  • Trim plate included
  • Mounting tabs included for mounting to hollow aluminum door
  • Includes 2 faceplates for nearly any type of frame:
  • Metal door frames – SD-996SS-11Q
  • Wood door frames – SD-996SS-31Q
  • Reversible non-handed design fits either right-hand or left-hand doors
  • Low profile: Strike is only 1″ (26mm) deep for use with aluminum frames
  • Optional lip-extension brackets available:
       SD-995C-LE25 1″ Lip Extension
       SD-995C-LE50 2″ Lip Extension

Specifications

Pixel Trans
  Product NameLow-Profile Electric Door Strike with Horizontal Adjustment
Pixel Silver
  Brand NameSeco-Larm
Pixel Silver
  Mfg #SD-996C-NUHQ
Pixel Silver
  Cube16 cu in
Pixel Silver
  Holding Force (Lb)1,500
Pixel Silver
  Operating Voltage12 / 24 VAC/VDC
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf SD-996C-NUHQ-Datasheet.pdf
