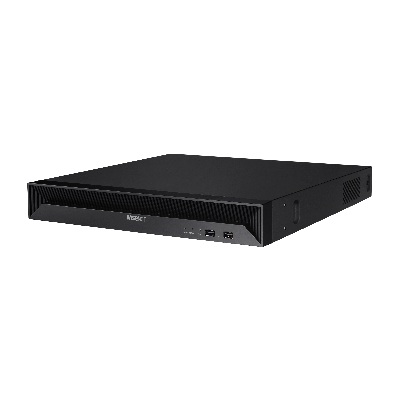

Hanwha Vision QRN-1630S 16 CH PoE NVR

The QRN-1630S is a Wisenet network video recorder (NVR) designed for professional IP surveillance systems requiring integrated recording, power, and management of multiple cameras. It supports up to 16 channels and includes 16 built-in PoE ports with a total PoE budget of 130W, allowing direct connection and power delivery to compatible IP cameras without the need for separate power supplies.

It supports cameras up to 8MP resolution and is compatible with H.265, H.264, and MJPEG compression formats, providing flexible recording options and efficient storage usage. The system delivers a network recording bandwidth of up to 128 Mbps and supports dual-stream recording for optimized performance and remote viewing.

For storage, it includes two internal SATA hard drive bays, each supporting up to 10TB, for a total maximum storage capacity of 20TB. This allows for extended video retention depending on recording settings and resolution.

The recorder features dual HDMI outputs, with support for local 4K display on HDMI1 (3840×2160 at 30Hz) and Full HD output on HDMI2 (1920×1080 at 60Hz), enabling flexible multi-monitor viewing setups. It also includes an Automatic Recovery Backup (ARB) feature, which helps retrieve and restore edge-recorded footage in case of network interruptions.

For alarm integration, it provides 4 alarm inputs, 2 alarm outputs, and RCA audio output support. Remote access is simplified through P2P QR code setup and is compatible with the Wisenet Mobile App (Android and iOS) and Wisenet Viewer software.

The QRN-1630S is NDAA and FCC compliant, making it suitable for government, commercial, and enterprise security installations.

Features:

• Up to 16 channels, compatible with 8 megapixels
• Compatible with H.265, H.264, and MJPEG codecs
• 128 Mbps network camera recording
• Plug & play connection via 16 PoE ports (130W PoE)
• Supports up to 2 hard drives (up to 10 TB each)
• Local HDMI/VGA monitoring
• Compatible with P2P service (QR code connection)
• Dual-stream recording option, 2 HDMI outputs with local 4K display resolution (HDMI1: 3840 x 2160 (30 Hz), HDMI2: 1920 x 1080 (60 Hz)) - Automatic Backup Recovery (ARB) function (also known as edge recording recovery). Four (4) alarm inputs, two (2) alarm outputs, and audio output (RCA).

• Easy P2P connection (QR code connection) with the Wisenet mobile app (for Android and iOS) and the free Wisenet viewer.
• NDAA and FCC compliant model.
