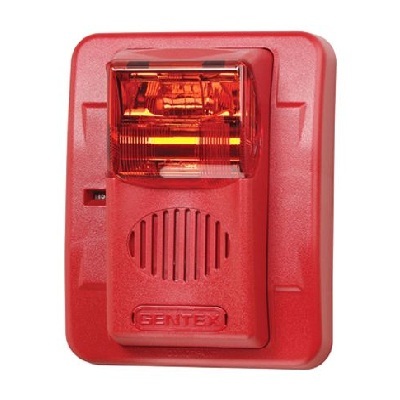

Gentex Corp. GECR24PWR Commander 3 Series 24 VDC Horn/Strobe with Red Lens

The Gentex Wall-Mount Horn/Strobe combines dependable audible and visual notification in a compact, high-performance device designed for fire alarm and emergency notification systems. Featuring a red lens, red faceplate, and plain (no lettering) design, this unit offers a clean appearance while delivering reliable life safety notification.

The field-selectable candela strobe provides installation flexibility to meet a variety of application requirements, while the integrated horn delivers clear, effective audible signaling. Designed for wall-mounted installations, this notification appliance is ideal for commercial, institutional, and industrial environments.

Features:

• Nominal voltage 24 VDC for horn, strobe and horn/strobe
• Nominal voltage 12 VDC for horn
• Fixed candela models of 15/75 and 177
• Unit Dimensions: 5” (12.7 cm) high x 4.5” (11.43 cm) wide x 2.5” (6.35 cm) deep
• Super-Slide® Bracket, Ease of Supervision Testing
• Checkmate® Instant Voltage Verification
• Prewire entire system, install mounting bracket, then install signals
• Documented lower installation and operating costs
• Input terminals 12 to 18 AWG
• Switch selection for high or low dBA
• Switch for 2400 Hz, mechanical, chime and tones
• Switch for continuous or temporal 3 (not available on whoop tone)
• Synchronize strobe and/or horn with Gentex AVSM Control Module
• Silence audible while visual appliance will remain flashing
• Tamperproof re-entrant style grill and locking screw (optional use)
• Surface mount with the GSB (Gentex Surface Mount Box)
• Faceplate available in red or off-white
• Wall mount
