Addressable Relay Base

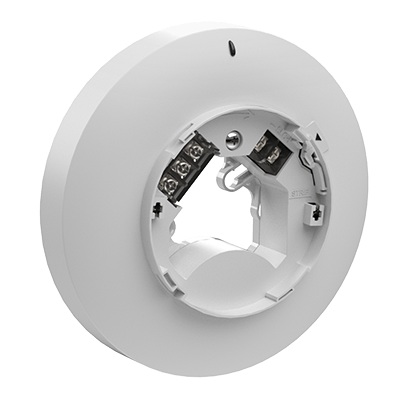

The Addressable Relay Base 6” (PAD300-RB) is combination detector base with a relay module included. The base has a locking feature for the detector that may be used or removed in the field. Once the detector is removed, the relay is accessible in the bottom of the unit. The PAD300-RB provides one form C relay output. The relay is rated for 2A at 30 VDC, and 0.5A at 125VAC. The PAD300-RB provides for separation of high voltage and non-power limited connections from the power limited Signaling Line Circuit (SLC). The PAD300- RB does not consume SLC address and does not require an auxiliary power source.

Features:

• One form C relay as part of the base assembly
• Relay rating: 2A @ 30VDC, 0.5A @ 125VAC
• Works independent of the detectors attached
• May be mapped to any device connected to the Control Panel
• LED to indicate that the unit is active
• Separation included in the base for high and low voltage and
  power limited/non-power limited connections
• Terminals accept 22 to 12 AWG wire sizes
• Supports Class A, Class X and Class B wiring
• Does not require SLC Loop address
• Product includes 5-year warranty
• UUKL Listed for Smoke Control
