Home » Fire » Detectors » Bases

$6\" Addressable Relay Base Fire-Lite Alarms By Honeywell B224RB-WH$

View Larger

6" Addressable Relay Base

Name: 6 Addressable Relay Base
Brand: Fire-Lite Alarms By Honeywell
SKU: B224RB-WH
Rating: 5 (1 reviews)

Item # B224RB-WH

Manufacturer Item # B224RB-WH

Sold As: ea
Special Order

More Products from Fire-Lite Alarms By Honeywell

Add to Shopping List

Save For Later

Overview

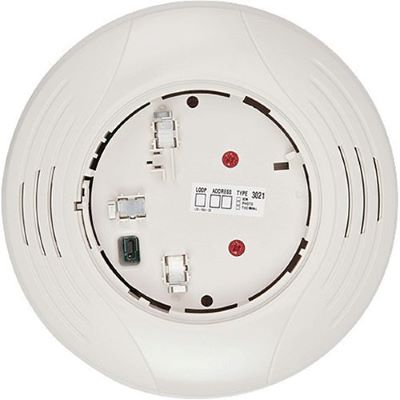

6" Addressable Relay Base

The B224RB-WH relay base provides one form-C contact relay for control of auxiliary functions, such as door closure and elevator recall. The relay can operate in two different modes (short and long delay). The activation time for the short delay is 60-100 milliseconds, while the activation time for the long delay is 6-10 seconds. A shunt with pin headers, located on the base PC board, is used to set the delay timing. White.

Specifications

Product Name	6" Addressable Relay Base

Brand Name	Fire-Lite Alarms By Honeywell

Mfg #	B224RB-WH

Cube	57.66 cu in

Height	1.20 in

Weight	0.5 lbs

Color	White

Connectivity	Wired

Diameter (In)	6.2

Environment	Indoor

Installation	Ceiling

Operating Voltage	15 - 32 VDC

Documents

B224RB-WH.pdf
