Home » Fire » Control Panels

View Larger

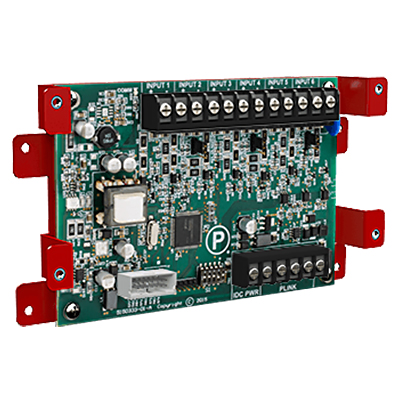

Initiating Device Circuit Expander

Name: Initiating Device Circuit Expander
Brand: Potter
SKU: IDC-6
Rating: 5 (1 reviews)

Item # IDC-6

Manufacturer Item # IDC-6

Sold As: ea
Special Order

More Products from Potter

Add to Shopping List

Save For Later

Overview

Initiating Device Circuit Expander

The Initiating Device Circuit xpander (IDC-6) provides an additional 6 inputs per module. The panel supports up to thirty-one (31) IDC-6 modules. The circuits are power-limited and supervised. All inputs are suitable to monitor 2-wire smoke detectors. Smoke detectors shall be installed in compliance with NF 72. Inputs can also be used for automatic, manual, waterflow or supervisory service. The IDC-6 communicates via the -Link communication bus. The IDC-6 can be mounted in either the control panel cabinet, the intelligent power supply, -2, -8 or the -14 expander cabinet. Each card is mounted to the exclusive Stacker Bracket for secure and accessible mounting.

Features:

Mounts with included stacker bracket
May mount in panel, accessory cabinet, AE-2, AE-8 or AE-14
Accessory Cabinets or the PSN-1000/E Power Supply
Provides 6 IDC Input Circuits
Maximum 31 IDC-6 per panel
Maximum P-Link wire length of 20 feet.

Specifications

Product Name	Initiating Device Circuit Expander

Brand Name	Potter

Mfg #	IDC-6

Cube	47.68 cu in

Length	1.13 in

Width	4.00 in

Height	6.00 in

Weight	1 lbs

Documents

IDC-6-Datasheet.pdf
