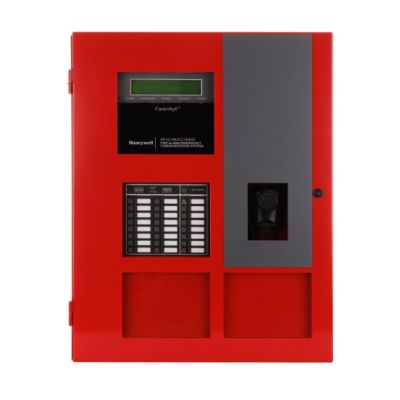

Farenhyt IFP-1100UECS 1100 Point Fire Alarm and Voice Evacuation Panel, Red Cabinet

The IFP-1100UECS Ultra Series panels and accessories provide features to meet the requirements for Mass Notification Systems as described in UL 2572 2nd Edition and UL 864 10th Edition. Red Cabinet.

 The IFP-1100UECS (red) and IFP-1100UECSB (black) are intelligent addressable Fire Alarm Control Panels combined with an Emergency Communication System (ECS) and are direct replacements for the IFP-1000ECS and IFP-2000ECS FACPs. When the ECS features are enabled, they are integrated with the fire alarm and voice evacuation functions of the control panel.

The emergency communication system operations include an onboard supervised microphone. All-call and non-active call buttons can quickly select all active or non-active output groups. The system also allows for emergency messages over fire.

Features:

• Single enclosure for both fire and emergency control components
• Ability to select ECS messages as priority over fire
• 15 Recordable one-minute messages that can be mapped to eight ECS buttons
• Capable of producing 520 Hz low frequency tones to meet NFPA 72 requirements
• Support for up to 15 LOC consoles and 16 addressable amplifiers (max total power 2000 watts)
• Expandable SLC loops to 1100U (IDP/SK) or 2032 (SD) point capacity
• Eight Flexput circuits for NAC outputs, auxiliary power, or conventional zones
• Selectable strobe synchronization for Amseco®, System Sensor®, Wheelock®, and Gentex® devices
• Built-in DACT with IP and optional cellular reporting
• Built-in USB interface for quick and easy programming
• JumpStart® auto programming reduces installation time
• 999 software zones & 999 output groups for flexible design options
• 23 preset notification cadence patterns (including ANSI® 3.41)
• Allows up to 63 SBUS devices (subject to loading)
• Four programmable function keys
• Two programmable relays and one fixed trouble relay
• Compatible with SWIFT® wireless devices
• Convenient field-upgradeable firmware
• Network support for up to 32 sites
