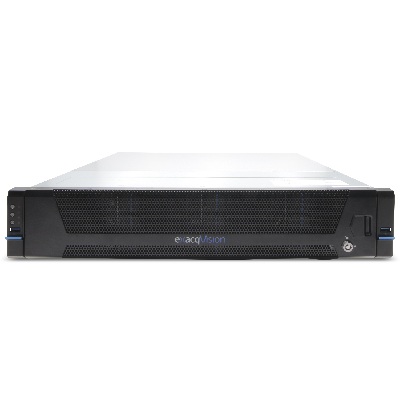

The IP01-72T-2AW is a 2U rackmount A-Series network video recorder (NVR) powered by exacqVision video management software, designed for professional video surveillance applications requiring high-capacity storage and reliable performance. Featuring one Professional IP camera license and support for up to 64 IP cameras, this scalable recording platform is ideal for commercial, industrial, educational, and enterprise environments. The system includes 72TB of internal JBOD storage, Windows 11 IoT Enterprise LTSC operating system installed on an SSD, and 8GB of RAM for efficient video recording and management. Dual 2.5GbE network ports, multiple display outputs, and USB connectivity provide flexible deployment and monitoring options. The NVR comes complete with a rackmount sliding rail kit, mouse, and keyboard, and includes pre-installed exacqVision VMS software, Lifetime Software Subscription Agreement (SSA), and a 5-year hardware warranty with RMA support.
Features:
- Continuous video recording at up to 700 Mbps for high concentrations of IP cameras
- Recording of up to 150 IP cameras per video server
- Streaming of up to 1800 frames per second of live/recorded video to web/mobile clients
- Streaming of live/recorded video to up to 100 simultaneous PC clients
- Optional quad network interfaces for faster archiving or optimal performance with multiple clients
- Minimized system boot time and risk of failure thanks to a highly reliable solid-state drive (SSD) for the operating system; Optional redundant operating system drives
- Continuous-duty video recording-grade hard drives optimized to reduce vibration and heat
- Uninterrupted operation and video preservation in case of video drive failure via optional RAID 6 and operating system drive failure via RAID 1 on SSDs
- Power failure protection with optional redundant power supplies
- Hardware status monitoring in the exacqVision client and with email/text message notifications
- Pre-licensed Kantech EntraPass Corporate Edition access control system on exacqVision Windows A-Series NVRs
- Easy scalability to control from just a few doors. Control thousands of doors and manage thousands of cards across multiple locations.
- Add an unlimited number of cardholders, up to 5 cards each.
- Improve response time to alarms and critical events by monitoring and controlling doors from exacqVision while viewing associated cameras.
- Learn more about exacqVision Kantech-Onboard integration.
- Includes 1 IP camera license (Professional or Enterprise).
- Compatible with thousands of IP camera models from leading manufacturers such as Illustra, Axis, Arecont, and others.
- Stores up to 288 TB of video.
- Compatible with all exacqVision video recorders and video management software for maximum scalability.
- Pre-configured with exacqVision professional VMS software (standard).
- EasyConnect: Automatically detects, assigns addresses, and connects IP cameras.
- Two-way audio.
- Powerful integration with access control, financial, and retail systems.
- Conduct research on recorded video, audio, and data with thumbnail or timeline search.
- Mark important videos for long-term preservation.
- Multi-stream video to optimize storage and network traffic.
- View video from anywhere. (Standard)
- Unlimited clients for Windows, Linux, and Mac PCs
- Live and recorded video from any browser
- Live and recorded video from most tablets and smartphones
- Upgrade to exacqVision Enterprise VMS software (optional)
- VideoPush for remote control of video wall clients
- Case management for scheduling critical tests
- Active Directory/LDAP for user administration by the IT department
- Simple, single-screen management of cameras, users, storage, and notifications
