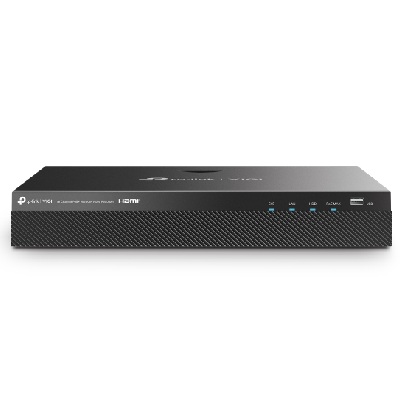

TP-Link VIGI NVR2016H-16MP VIGI 16 Channel PoE+ Network Video Recorder, 16MP

The VIGI NVR2016H-16MP from TP-Link is a 16-channel PoE+ network video recorder designed for professional IP surveillance systems. It allows users to connect and manage up to 16 IP cameras through built-in PoE ports, simplifying installation by providing both power and data over a single cable.

It supports real-time live viewing on up to 16 channels with 4K HDMI video output, delivering high-definition monitoring for security applications. The system provides strong decoding capability, supporting up to 10 channels at 3MP (25fps) or 16 channels at 1080P (25fps), depending on configuration.

With a total 140W PoE budget, the NVR can power multiple compatible cameras directly. It also supports up to 320 Mbps incoming and outgoing bandwidth, ensuring smooth video transmission even in larger installations. For storage, it includes two SATA interfaces supporting up to 16TB per drive, allowing for extended recording retention.

The recorder uses H.265+ compression technology to reduce storage requirements while maintaining video quality. Additional features include 16-channel synchronous playback, 6 alarm inputs and 4 outputs, and HDMI/VGA outputs that can operate independently or simultaneously.

Features:

• 16-channel live view and 4K HDMI video output
• 16 10/100 Mbps PoE+ ports with a 140W PoE budget
• Decoding capability for up to 10 channels at 3 MP (25 fps) / 16 channels at 1080p (25 fps)
• 16-channel synchronous playback
• 320 Mbps input/output bandwidth
• 2 SATA interfaces and 1 up to 16 TB
• H.265+ compression technology
• Alarm input/output: 6/4
• Independent/simultaneous HDMI and VGA output
