Hanwha Vision XRN-3220RB2 32CH NVR with 12th gen. Intel® Processor

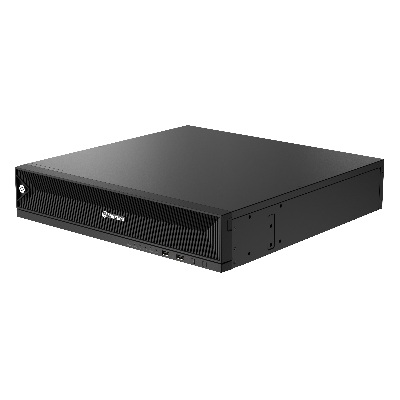

The XRN-3220RB2 is a high-performance 8K network video recorder (NVR) designed for large-scale enterprise surveillance systems requiring high throughput, advanced storage, and redundancy features. It supports up to 32 IP camera channels and is built on an Intel-based platform for enhanced processing power and system stability.

It supports H.265, H.264, and MJPEG compression formats and is compatible with SUNAPI and ONVIF protocols for broad camera integration. The system delivers up to 520 Mbps of recording bandwidth and up to 200 Mbps of playback performance, making it suitable for handling large numbers of high-resolution IP camera streams simultaneously.

The NVR includes eight SATA bays, each supporting up to 10TB, allowing for flexible and scalable storage configurations. It supports RAID 5 and RAID 6 (with required drive minimums), as well as iSCSI external storage integration for expanded capacity. It ships without hard drives, allowing customized storage deployment.

For reliability, it includes ARB (Automatic Recovery Backup) and N+1 failover support to maintain continuous recording in case of system or network interruptions. WiseStream technology is also supported to optimize bandwidth usage.

The system supports dual HDMI outputs for multi-monitor display configurations and can handle camera resolutions up to 32MP for both recording and live viewing. Additional features include fisheye dewarping (locally or via CMS), AI search functionality when used with compatible Wisenet AI cameras, alarm inputs/outputs, two-way audio, and P2P QR code setup for simplified remote access.

Features:

• 8K NVR (Intel-based)
• 32 Channels
• 8 SATA Hard Drive Bays (up to 10 TB per drive)
• H.265/H.264/MJPEG, SUNAPI
• ONVIF
• ARB (Automatic Backup Recovery) and Failover (N+1)
• Recording up to 520 Mbps / Playback up to 200 Mbps
• Dual Stream Recording
• iSCSI
• WiseStream Support, Dual HDMI Display (x2)
• Alarm Input/Output, Two-Way Audio
• Maximum Camera Resolution of 32 MP for Recording/Playback
• Fisheye Distortion Correction (Local/CMS)
• AI Search (Wisenet AI Cameras Only)
• RAID 5/6 Support (NOTE: RAID requires a minimum number of installed hard drives)
• P2P QR Code
