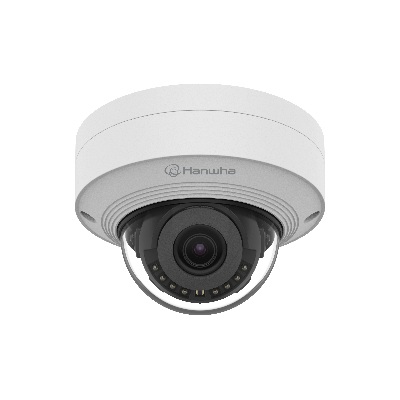

The QNV-C8011R is a Wisenet Q series mini outdoor vandal-resistant dome network camera designed for compact yet intelligent surveillance applications. It delivers 5MP resolution at up to 30 frames per second, providing sharp and detailed video for both live monitoring and recorded playback.
It is equipped with a fixed 3mm lens offering a wide field of view (H: 100°, V: 73°), making it well-suited for monitoring entrances, small outdoor areas, and perimeter zones. The camera supports triple codec compression (H.265, H.264, MJPEG) along with WiseStream III technology, which uses AI-driven optimization to reduce bandwidth and storage requirements while maintaining high image quality.
For enhanced image performance, it includes WiseNR II AI-based noise reduction and 120dB Wide Dynamic Range (WDR), ensuring clear visibility in both low-light and high-contrast environments. It also features infrared night vision with a range of up to 20 meters (65.6 ft) for reliable performance in darkness.
The camera includes AI-powered analytics such as WiseMD motion detection and object classification for people and vehicles, including vehicle type recognition (car, bus, truck, motorcycle, bicycle). It also supports intelligent video analytics (IVA) such as virtual line crossing, intrusion detection, loitering, entry/exit tracking, and appear/disappear detection. Additional features include defocus detection and hallway view mode.
For edge storage, it includes a built-in microSD card slot supporting up to 256GB and supports USB-assisted installation for simplified setup. It is powered via PoE and is compatible with open platform systems and OnCloud remote management.
Features:
- CloudConnector compatible: Easily connects with HealthPro and OnCloud
- 5 MP resolution
- 3.0 mm fixed lens (H: 100°/V: 73°)
- 30 fps at all resolutions (H.265/H.264)
- Triple codec H.265/H.264/MJPEG with Wisestream III (AI engine-based), WiseNRII (AI engine-based), 120 dB WDR
- Day/Night (ICR), WDR (120 dB)
- Blur detection, appearance/disappearance detection, tampering detection, AI engine-based motion detection, AI object detection: object type classified: person/vehicle (vehicle type: car/bus/truck/motorcycle/bicycle), AI-based IVA events: Virtual line (crossing/direction), virtual area (Loitering/Intrusion/Entry/Exit)
- People Counting, Heat Map, Queue Management, and Vehicle Counting
- Micro SD Card Slot (256 GB), PoE/12V DC
- Infrared Vision Range: 20 m (65 ft)
- IP66, IK10
- Aisle View Support
- Lens Distortion Correction (LDC) Support
- USB for Easy Installation, Open Platform
- Operating Temperature: -40°C to +55°C (-40°F to +131°F), White
