Home » Power & Batteries » Power Supplies » Modules

View Larger

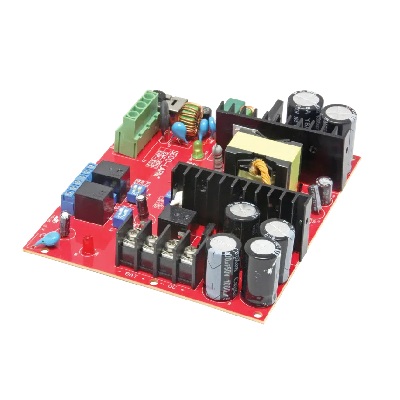

Access Control Power Supply Module 5A, 1 Output

Name: Access Control Power Supply Module 5A, 1 Output
Brand: Seco-Larm
SKU: EAP-5D1MQ
Rating: 5 (1 reviews)

Item # EAP-5D1MQ

Manufacturer Item # EAP-5D1MQ

Sold As: EA
Special Order

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Access Control Power Supply Module 5A, 1 Output

Access ontrol power supply. AC power failure supervision relay. Battery failure supervision relay. Over-current fuse-protected AC input.

Features:

Current rating: 5A@12VDC, 2.5A@24VDC
Input: 110~240 VAC, over-current fuse-protected at 3.15A
Output: 12/24 VDC (field selectable)
Adjustable output voltage (12~13 VDC / 23~25 VDC) to compensate for voltage drop
Filtered and electronically regulated output
AC power failure supervision relay 3A@24VDC dry relay output
Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch
Battery failure / low battery supervision relay – 3A@24VDC dry relay output
Built-in back-up battery charger (batteries not included)
Automatically switch to backup battery if AC fails
Automatic shutdown for short-circuit and overload protection

Specifications

Product Name	Access Control Power Supply Module 5A, 1 Output

Brand Name	Seco-Larm

Mfg #	EAP-5D1MQ

Cube	94.78 cu in

Length	4.70 in

Width	1.50 in

Height	5.50 in

Weight	0.7 lbs

Output Voltage	12 / 24 VDC

Documents

EAP-5D1MQ-Datasheet.pdf
