Talk a Phone ETP-520E ETP-520 Series Analog Call Station with \"EMERGENCY\" Button/Signage Talk A Phone ETP-520E
View Larger

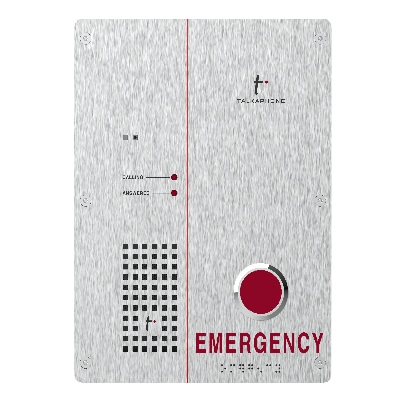

Talk a Phone ETP-520E ETP-520 Series Analog Call Station with "EMERGENCY" Button/Signage

Item # ETP-520E
Manufacturer Item # ETP-520E

Log In To View
Prices
Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Talk A Phone
More Products from Talk A Phone
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Talk a Phone ETP-520E ETP-520 Series Analog Call Station with "EMERGENCY" Button/Signage
Pixel Trans
The Talkaphone ETP-520E is a rugged, hands-free emergency call station designed to provide fast and dependable communication during emergencies. Ideal for campuses, parking facilities, transportation hubs, industrial sites, and public spaces, the unit allows users to connect with security or emergency personnel by pressing a single EMERGENCY button.

Built for long-term reliability in outdoor environments, the ETP-520E features a vandal-resistant stainless steel faceplate, weather-resistant construction, and highly visible ADA-compliant signage with Braille for accessibility. It operates directly from a standard analog telephone line, eliminating the need for a separate power supply, and supports automatic dialing to multiple emergency contacts to help ensure calls are answered quickly.

Features:
  • ADA-compliant "EMERGENCY" signage (raised lettering and braille)
  • [NEW] The "EMERGENCY" button can automatically dial up to five (5) phone numbers. If the first number is not answered or busy, the unit dials the second. If the second number is also not answered or busy, the unit dials the third, and so on.
  • Vandal-resistant marine-grade 316 stainless steel faceplate
  • IP66 waterproof construction
  • Stainless steel metal push button designed for extended use and weather resistance
  • Two (2) LED indicators for the hearing impaired (labeled "CALLING" and "ANSWERED")
  • Operates on standard telephone lines for communication and operation
  • Telephone line powered: no external power supply or backup battery required
  • Monitoring mode automatically answers calls initiated by an operator, allowing you to monitor the local area
  • Allows you to identify the physical location of the call station via a pre-recorded voice message played at the start of the call
  • The available auxiliary input can be activated by a momentary dry contact (e.g., vehicle detector) to automatically dial a list of telephone numbers; Request model ETP-AUXIN-KIT-2 to enable this feature.
  • Two (2) auxiliary outputs provide a dry contact for devices such as a blue light beacon, access control panel, or security camera.
  • [NEW] Line-level output (600 ohms) to an audio amplifier or public address system, allowing for audio notification via a standard telephone call.
  • [NEW] Compatible with the active induction loop panel (model AHLP-1): requires an external power supply.

Specifications

Pixel Trans
  Product NameTalk a Phone ETP-520E ETP-520 Series Analog Call Station with "EMERGENCY" Button/Signage
Pixel Silver
  Brand NameTalk A Phone
Pixel Silver
  Mfg #ETP-520E
Pixel Silver
  Cube520 cu in
Pixel Silver
  Length8.50 in
Pixel Silver
  Height11.50 in
Pixel Silver
  Weight5 lbs
Pixel Silver
  UPC6078943000894
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf ETP-520E-Datasheet.pdf
Pdf ETP-520E-Manual.pdf
