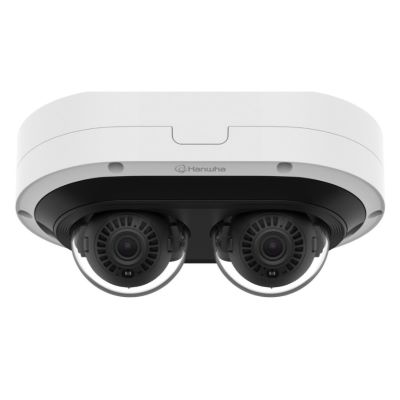

6MP x 2 AI IR Multi-Directional IP Dome Camera Hanwha Vision PNM-C12083RVD
View Larger

6MP x 2 AI IR Multi-Directional IP Dome Camera

Item # PNM-C12083RVD
Manufacturer Item # PNM-C12083RVD

Log In To View
Prices
Pixel Silver
Sold As: ea
Special Order
Pixel Trans
Pixel Trans
Hanwha Vision
More Products from Hanwha Vision
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Product Bookmark  Share
Report Incorrect
Pixel Trans

Overview

Pixel Trans
6MP x 2 AI IR Multi-Directional IP Dome Camera
Pixel Trans
Network vandal outdoor 2CH AI IR dome camera, (6MP X 2 sensors) 12MP @ 15fps, 3.4~6.8mm(2x) (95.08°~47.64°) motorized varifocal lens, triple codec (H.265/H.264/MJPEG), IR viewable length 25m (82ft), USB port for easy installation, Day & Night (ICR), extremeWDR (120dB), DIS, Handover, Analytics events based on AI engine: Object detection(Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events : Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Appear/Disappear, FIPS 140-2, micro SD card 512GB, IP66, NEMA4X, IK10, Operating temperature: -40°C~+55°C(-40°F ~ +131°F), Power: PoE+, Metal shielded RJ-45, Hard-coated dome bubble

Features:
  • Analytics events based on AI engine: Classified object(Person/Face/Vehicle/License plate)
  • Attributes(vehicle type: Car/Bus/Truck/Motorcycle/Bicycle)
  • Support BestShot
  • WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ, extremeWDR (120dB)
  • Maximum 3328x1872 resolution
  • Maximum 15fps@6M
  • Color: 0.16lux(F1.67, 1/30sec, 30IRE), 0 Lux (IR LED on)
  • 3.54-6.69mm motorized varifocal, 78° tilt angle
  • IR viewable length: IR 25m(82ft) based on scene
  • TPM 2.0(FIPS 140-2 certified)
  • IP66, IK10, NEMA4X

Specifications

Pixel Trans
  Product Name6MP x 2 AI IR Multi-Directional IP Dome Camera
Pixel Silver
  Brand NameHanwha Vision
Pixel Silver
  Mfg #PNM-C12083RVD
Pixel Silver
  Cube472.5 cu in
Pixel Silver
  Length5.31 in
Pixel Silver
  Width8.46 in
Pixel Silver
  Height3.67 in
Pixel Silver
  Weight2.93 lbs
Pixel Silver
  ColorWhite
Pixel Silver
  CompressionH.265 / H.264 / MJPEG
Pixel Silver
  EnvironmentOutdoor
Pixel Silver
  FinishAluminum
Pixel Silver
  Lens Size (mm)3,54 - 6,69
Pixel Silver
  Lens TypeMotorized
Pixel Silver
  Operating VoltagePOE+
Pixel Silver
  RatingIP67 / IP66 / NEMA 4X
Pixel Silver
  Resolution6 MP
Pixel Silver
  UPC8801089217400
Pixel Silver
  VandalIK10
Pixel Silver
  WDR (Db)120
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf PNM-C12083RVD-Datasheet.pdf
