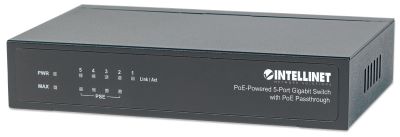

5-Port Gigabit Switch with PoE Passthrough Intellinet 561082
View Larger

5-Port Gigabit Switch with PoE Passthrough

Item # 561082
Manufacturer Item # 561082

Log In To View
Prices
Pixel Silver
Sold As: EA
Pixel Trans
Pixel Trans
Intellinet
More Products from Intellinet
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
5-Port Gigabit Switch with PoE Passthrough
Pixel Trans
5-Port Desktop Gigabit Switch with PoE Passthrough, 68W, 4 x PSE PoE ports, 1 x PD PoE port.

Features:
  • 10/100/1000 auto-sensing ports automatically detect optimal network speeds
  • IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
  • Can be powered via PoE or the included AC power adapter
  • Total power budget of 68 watts when using AC power
  • Total power budget of 26 watts when powered via PD input port
  • Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
  • Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
  • All RJ45 ports with Auto-MDIX (auto uplink) support
  • IEEE 802.3x flow control for full duplex
  • Supports up to 2048 MAC address entries
  • 256 kBytes buffer memory

Specifications

Pixel Trans
  Product Name5-Port Gigabit Switch with PoE Passthrough
Pixel Silver
  Brand NameIntellinet
Pixel Silver
  Mfg #561082
Pixel Silver
  Cube199.52 cu in
Pixel Silver
  Length3.07 in
Pixel Silver
  Width5.51 in
Pixel Silver
  Height1.10 in
Pixel Silver
  Weight1.3 lbs
Pixel Silver
  ClassIEEE 802.3at/af
Pixel Silver
  ColorBlack
Pixel Silver
  ConnectivityEthernet
Pixel Silver
  ConnectorRJ45
Pixel Silver
  Country of OriginCN
Pixel Silver
  EnvironmentIndoor
Pixel Silver
  Harmonized Code8517.62.0090
Pixel Silver
  InstallationDesktop
Pixel Silver
  ManagementUnmanaged
Pixel Silver
  Maximum Power Per Port (W)30
Pixel Silver
  Operating Voltage120 VAC / POE
Pixel Silver
  PoE Budget (W)68
Pixel Silver
  PoE Ports5
Pixel Silver
  Ports5
Pixel Silver
  Speed10/100/1000
Pixel Silver
  UPC766623561082
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf 561082.pdf
