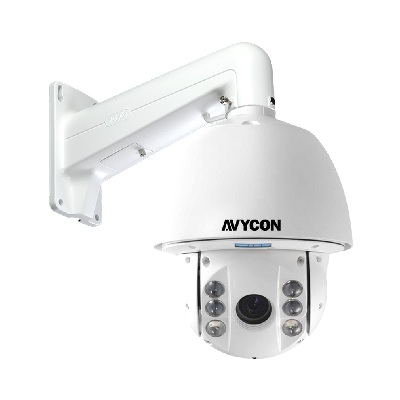

Professional outdoor HD-TVI PTZ camera featuring a 1/3″ CMOS sensor and Full HD (1920x1080) resolution, 30x optical zoom (4–120mm) plus 16x digital zoom, and infrared night vision up to 120m. It supports 360° continuous pan, –5° to 90° tilt, and fast movement speeds (up to 240°/s), and offers up to 256 presets, patrols, and auto-tours. Features include autofocus, digital WDR, 3D-DNR, privacy masks, Pelco P/D or UTC protocol control over coaxial cable, and power failure position memory. Its rugged design meets IP66 and IK10 ratings, withstands extreme temperatures (–30° to +65°C), and is equipped with surge protection, making it ideal for demanding outdoor video surveillance applications.
Features:
- 0 lux minimum illumination
- Up to 120m ir distance
- IR light mtbf reaching up to 30,000 hours
- 1/3” high performance cmos, up to 1920x1080 resolution
- ±0.1° preset accuracy
- Self-adaptive to pelco-p/d protocol
- 3d intelligent positioning function
- Power-off memory function: restore ptz & lens status after reboot
- Built-in temperature sensor, with display of internal temperature
- Lightning protection, surge protection and voltage transient protection
- IP66 standard (outdoor dome)
- Impact protection: iec60068-2-75 test, eh, 20j; en50102, up to ik10
- RS-485 communication diagnosis
- Scheduled ptz movement
- UTC (up the coax) function
- Auto focus, auto white balance, backlight compensation and auto/manual day & night switch
- Privacy masks programmable
- 3D dnr, digital WDR
- 360° endless pan range and -5°-90° tilt range
- 300°/s pan preset speed and 200°/s tilt preset speed
- 0.1°-250°/s manual pan speed and 0.1°-150°/s manual tilt speed
- 256 presets programmable; preset image freezing capability
- 8 patrols, up to 32 presets per patrol
- 4 patterns, with the total recording time not less than 10 minutes
- Proportional zoom function
- Park action: auto call up of ptz movement, after a defined time of inactivity
