Home » Access & Intercom » Exit Devices » Push Buttons

$Weather Resistant Mushroom Cap Request-to-Exit Plate - \"Exit\" & \"Salida,\" SPDT, Timer Seco-Larm SD-7201GAPT1Q$

View Larger

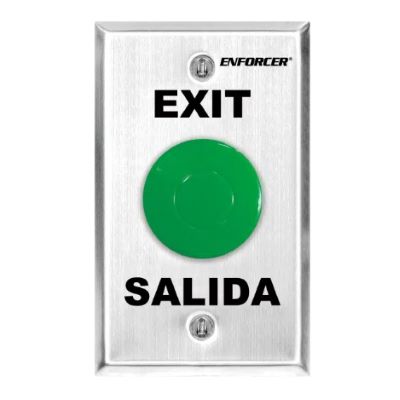

Weather Resistant Mushroom Cap Request-to-Exit Plate - "Exit" & "Salida," SPDT, Timer

Name: Weather Resistant Mushroom Cap Request-to-Exit Plate - Exit & Salida, SPDT, Timer
Brand: Seco-Larm
SKU: SD-7201GAPT1Q
Rating: 5 (1 reviews)

Item # SD-7201GAPT1Q

Manufacturer Item # SD-7201GAPT1Q

Sold As: EA
Special Order

More Products from Seco-Larm

Add to Shopping List

Save For Later

Overview

Weather Resistant Mushroom Cap Request-to-Exit Plate - "Exit" & "Salida," SPDT, Timer

The ENFORCER Weather-Resistant Mushroom-Cap RTE Plates are ideal for many outdoor access situations, with a 1-1/2″ (38mm) diameter mushroom-cap (green or red), single-gang faceplate and NO/NC contact rated 3A@24VDC.

Features:

ETL, Conforms to UL Std. 294
Stainless-steel face-plate
“EXIT” and “SALIDA” silk-screened on plate
Fits into standard single-gang box
Green mushroom cap push button
Built-in timer (1~60s)
NO/NC contact rated 3A@24VDC
Buzzer output for audio status

Specifications

Product Name	Weather Resistant Mushroom Cap Request-to-Exit Plate - "Exit" & "Salida," SPDT, Timer

Brand Name	Seco-Larm

Mfg #	SD-7201GAPT1Q

Cube	34.03 cu in

Length	2.75 in

Width	2.75 in

Height	4.50 in

Weight	0.29 lbs

Environment	Outdoor

Operating Voltage	12 / 24 VDC

Rating	IP65

Documents

SD-7201GAPT1Q-Datasheet.pdf
