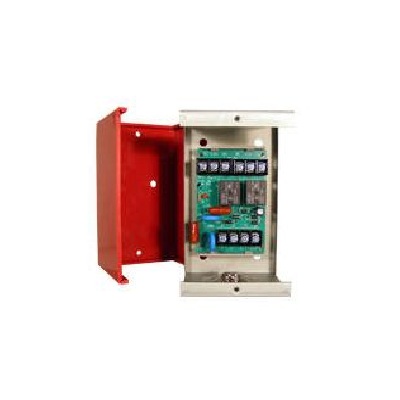

MR-200 Series Multi-Voltage Control Relays

The MR 200 Series Multi-Voltage Control Relays offer DPDT resistive contacts which may be operated by one of four input control voltages. A single relay may be energized from a voltage source of 24VDC, 24VAC, 120VAC or 230VAC by wiring to appropriate input terminals.

Each relay position contains a red LED which indicates the relay coil is energized. Relays may be "snapped apart" from a standard 4 module assembly and used independently. These devices are ideal for applications where local contacts are required for system status, remote contacts for control of electrical loads and general purpose switching. They are suitable for use with HVAC, temperature control, fire alarm, security, energy management and lighting control systems.

Features:

• The relays can be powered from a voltage source of 18 to 35 VDC, 24 VAC, 120 VAC, or 230 VAC.
• Each relay position contains a red LED that illuminates when the coil is energized.
• Single, dual, or triple relay modules can be removed from the standard 4-position master relay.
• The DC input is polarized.
• Continuous duty use.
