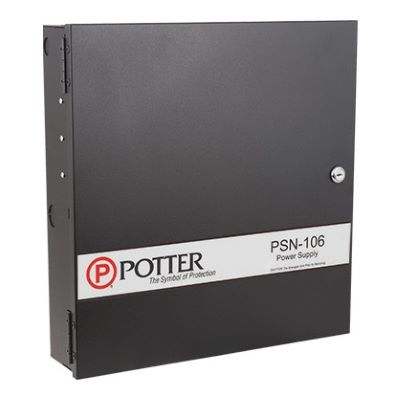

10 A Power Supply - Black Potter PSN-106B
View Larger

10 A Power Supply - Black

Item # PSN-106B
Manufacturer Item # PSN-106B

Log In To View
Prices
Sold As: ea
Special Order
Potter
More Products from Potter
  Add to Shopping List
  Save For Later
  Share

Overview

10 A Power Supply - Black
The PSN series of notification power supplies offers reliable notification power with unprecedented versatility. This power supply offer 10 amps of continuous power through 6 outputs respectively. Each output is rated at 3 amps and it may be used continuously without any derating.

Features:
  • PSN-106 has 10 amps regulated with 6 outputs
  • May be configured as up to three class “A” Style “Z” notification circuits
  • Two Trouble relays (5A at 30VDC) General System Trouble (programmable for AC delay) Low AC Trouble with optional delay settings
  • Diagnostic LED’s Status LED’s for Active NAC and NAC Trouble conditions.
  • Quadrasync feature synchronizes horns/strobes from AMSECO, Gentex, Cooper-Wheelock and System Sensor
  • May be connected to any manufacturers UL864 listed FACP/ Unit for activation and supervision
  • Configurable output circuits (DIP switch sets options for each circuit)
  • Reference EOL allows 2K – 27K EOL value to be used
  • Pass Thru mode allows the outputs to match the input signal from FACP

Specifications

  Product Name10 A Power Supply - Black
  Brand NamePotter
  Mfg #PSN-106B
  Cube945.62 cu in
  Length3.50 in
  Width16.13 in
  Height16.75 in
  ColorBlack
  ConnectivityWired
  EnvironmentIndoor
  NAC's6
  Operating Voltage120 / 220 VAC
  Output Voltage24 VDC
  Outputs6

Documents

PSN-106B.pdf
