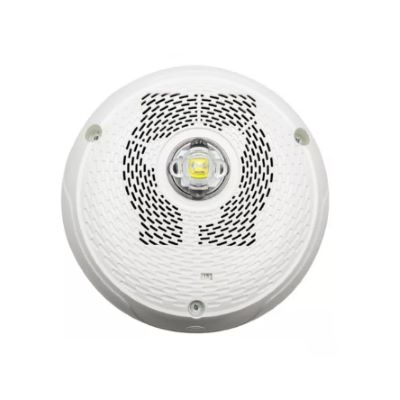

Outdoor Speaker Strobe LED White Ceiling System Sensor SPSCWKLED
View Larger

Outdoor Speaker Strobe LED White Ceiling

Item # SPSCWKLED
Manufacturer Item # SPSCWKLED

Log In To View
Prices
Pixel Silver
Sold As: ea
Pixel Trans
Pixel Trans
System Sensor
More Products from System Sensor
Pixel Silver
Product Shopping List  Add to Shopping List
Product Wish List  Save For Later
Pixel Trans
Report Incorrect
Pixel Trans

Overview

Pixel Trans
Outdoor Speaker Strobe LED White Ceiling
Pixel Trans
System Sensor L-Series Outdoor Speakers and L-Series with LED Outdoor Speaker Strobes offer the most versatile and easy-to-use line of weatherproof speakers and speaker strobes that can meet virtually any application requirement, including outdoor,indoor, wet, dry, and washdown environment applications in temperatures from −40°F to 151°F. The speakers provide a broad frequency response range, low harmonic distortion offering a highfi delity sound output while offering a high-volume sound output for use in high ambient noise applications.

Features:
  • Weatherproof per NEMA 4X, IP56 as a standalone device
  • Rated from -40°F to 151°F LED technology provides lower current draw
  • Field-selectable candela settings on wall units: 15, 30, 75, 95, 110, 135, and 185
  • Field-selectable candela settings on ceiling units: 15, 30, 75, 95, 115, 150, and 177
  • Rotary switches for candela, speaker voltage (25 and 70.7 Vrms) and power settings (¼, ½, 1, and 2 watts)
  • Mounting plates with wirenuts are provided to make the connection between the field wiring and the mounting plates
  • Synchronization through use of UL approved power supplies that support System Sensor Sync protocol or System Sensor MDL Sync Module
  • Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 VDC
  • UL/ULC

Specifications

Pixel Trans
  Product NameOutdoor Speaker Strobe LED White Ceiling
Pixel Silver
  Brand NameSystem Sensor
Pixel Silver
  Mfg #SPSCWKLED
Pixel Silver
  Cube168.75 cu in
Pixel Silver
  Length6.97 in
Pixel Silver
  Width6.97 in
Pixel Silver
  Height2.49 in
Pixel Silver
  Candela15 - 177
Pixel Silver
  ColorWhite
Pixel Silver
  EnvironmentOutdoor
Pixel Silver
  Operating Voltage16 - 33 VDC
Pixel Silver
  RatingNEMA 4X
Pixel Silver
Pixel Trans

Documents

Pixel Trans
Pdf SPSCWKLED-Datasheet.pdf
