1/2\" Tamper-Resistant Surface-Mount Electric Rim Strike Seco-Larm SD-998C-D3AQ
View Larger

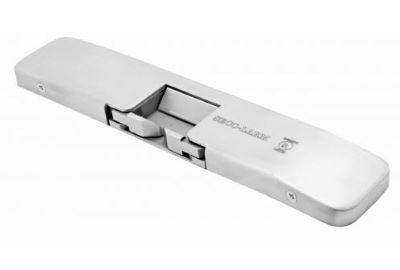

1/2" Tamper-Resistant Surface-Mount Electric Rim Strike

Item # SD-998C-D3AQ
Manufacturer Item # SD-998C-D3AQ

Log In To View
Prices
Sold As: ea
Seco-Larm
More Products from Seco-Larm
  Add to Shopping List
  Save For Later
  Share

Overview

1/2" Tamper-Resistant Surface-Mount Electric Rim Strike
The SECO-LARM SD-998C-D3AQ is a Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2" throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation. UL Listed, UL 294 and UL 1034.

Features:
  • Tamper-resistant
  • 12/24 VDC Operating voltage
  • Non-polarized connection
  • Horizontal adjustment
  • Accommodates up to 3/4" Pullman latch
  • Reversible non-handed design
  • Stainless steel construction
  • Works with standard rim type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
  • For Indoor Use Only
  • Static strength - 1,500lb (6673N)
  • Tested for 250,000 cycles (UL Tested)
  • Low current draw: 540mA@12VDC, 270mA@ 24VDC

Specifications

  Product Name1/2" Tamper-Resistant Surface-Mount Electric Rim Strike
  Brand NameSeco-Larm
  Mfg #SD-998C-D3AQ
  Cube59.34 cu in
  Length1.75 in
  Width0.50 in
  Height9.00 in
  Country of OriginTW
  Door FrameMetal / Wood
  EnvironmentIndoor
  FinishStainless Steel
  Gap (In)1/2" (12.5mm)
  Harmonized Code8302.41.9080
  Holding Force (Lb)1500
  Lock Fail ConfigSafe / Secure
  Lock TypeRim
  Operating Voltage12 / 24 VDC
  UPC676544020424

Documents

SD-998C-D3AQ.pdf
