Home » Fire » Detectors » Bases » Addressable

$4\" Addressable Detector Base Potter PAD 100-4DB$

View Larger

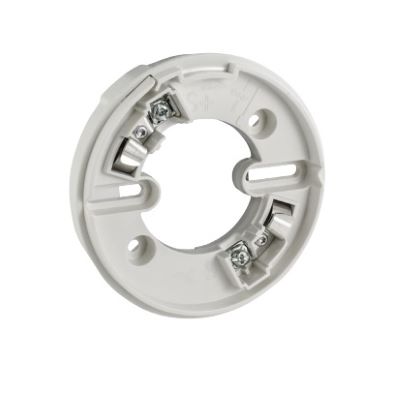

4" Addressable Detector Base

Name: 4 Addressable Detector Base
Brand: Potter
SKU: PAD 100-4DB
Rating: 5 (1 reviews)

Item # PAD 100-4DB

Manufacturer Item # PAD100-4DB

Sold As: ea
Special Order

More Products from Potter

Add to Shopping List

Save For Later

Overview

4" Addressable Detector Base

The PAD100-4DB is low-profile, surface mount base used with Potter’s addressable smoke and heat detectors. The base uses screwclamp terminals that accept wire ranging from 22 to 14 AWG.

Features:

Terminals Marked with Polarity to assist with installation
Duplicate terminals for in and out SLC wiring
Terminals accept 22 to 12 AWG wire sizes
Installs on single gang, double gang, octagon or 4” square box
Locking tab prevents unauthorized detector removal
Product includes 5 year warranty

Specifications

Product Name	4" Addressable Detector Base

Brand Name	Potter

Mfg #	PAD100-4DB

Cube	42.25 cu in

Height	0.72 in

Color	White

Diameter (In)	6.3

Documents

PAD100-4DB.pdf

In This Category

24 VDC Addressable Relay Base

PAD 100-RB

View

24 VDC Addressable Sounder Base

PAD300-SB

View

4" Plug-in Detector Base - White

B501-WHITE

View

6" Addressable Detector Base

PAD 100-6DB

View

6" Addressable Relay Base

B224RB-WH

View
