Name: 318 MHZ Wiegand Output Receiver
Brand: Linear
SKU: WOR
Rating: 5 (1 reviews)

Overview

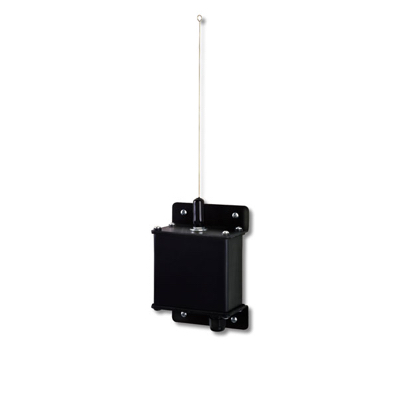

318 MHZ Wiegand Output Receiver

The Model WOR Wiegand Output Receiver is designed for use as an access control interface for Linear’s block coded digital transmitters. The unit receives signals from transmitters, adds a facility code to the data, and sends the information to the Wiegand input of the access control panel via a 5-wire connection.

Features:

Easy way to equip existing installations with radio transmitter access
Keyless entry offers user convenience, safety, and security for triggering gates, barrier arms, and doors
Ideal way to facilitate handicapped access
Multi-button transmitters can double as personal emergency devices for triggering security alarms
RF input/Wiegand output receiver supports 26, 30, and 31-bit data formats
Wide selection of MegaCode (over 1 million codes) format transmitters, with available block coding
Field adjustable read range – from 5 to 500 feet
Connects as easily as a card reader; transmitters are added like cards, with no software changes required
Facility and ID codes tailored to system requirements
Weather-resistant case for mounting outdoors

Specifications

Product Name	318 MHZ Wiegand Output Receiver

Brand Name	Linear

Mfg #	ACP00727

Cube	195.33 cu in

Length	4.25 in

Width	2.50 in

Height	6.25 in

Connectivity	Wireless

Environment	Outdoor

Transmission Band	318 MHz

UPC	93863103612
