10/100/1000M 16 Port 270W Gigabit PoE Switch with 2 1000Mbps SFP

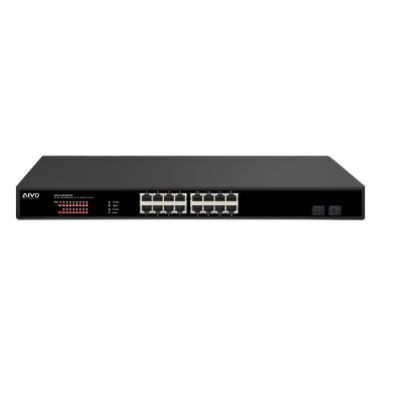

AVN-S16-2P16W270G is 16 port Gigabit PoE/PoE+ Switch with 2 x 1000Mbps SFP ports by Avycon. The AVN-S16-2P16W270G provides 16 PoE/PoE+ ports, which can automatically detect and provide power for any connected 802.3at/af Powered Device (PD), such as VOIP Phones, APs, IP Phones and IP Cameras. With its advanced surge protection features, it is suitable for larger commercial applications. The AVN-S16-2P16W270G comes with industrial standard 19’’ 1U rack-mountable chassis. All PoE ports support the IEEE802.3af/IEEE802.3at standard, with a maximum output of 30W per each port and a total PoE budget of 243W.

Features:

• IEEE802.3af / IEE802.3at Compliant
• 16 x 10/100/1000Base-TX Ports and 2 x 1000Mbps SFP Ports
• 16 x PoE / PoE+ ports, with each port supporting a 30W max. power output
• Total PoE budget of 243W
• High backplane bandwidth of 36 Gbps
• Up to 8k MAC address table size
• IEEE802.3x Flow control
• Industrial standard 19" 1U rack-mountable housing
• Pin Assignment: V+ (RJ45 Pins 1, 2), V- (RJ45 Pins 3, 6)
• Advanced surge protection for both power and data ports
• EMI standards complies with FCC, CE class B
